China wireless high precision temperature and humidity sensor supplier
- PRODUCT DETAIL
This product is a high quality wireless collection terminal developed by the company over 2 years. Full consideration of the harsh site environment and on-site implementation has successfully solved the inherent shortcomings of similar products. Achieve ultra long distance (line of sight 800m or more).
The site is easy to implement and the terminal address can be freely configured. The data is directly transmitted to the LM5006Z aggregation host or the economical wireless receiver, and the receiver performs unified data storage, uploading, alarming and other subsequent processing.
Product number
BEMS-d303TM
Product Features
Monitor the temperature and humidity changes of the environment and complete the real-time collection by wireless transmission. It can cooperate with the repeater, wireless gateway and host computer software to complete analysis and alarm functions.

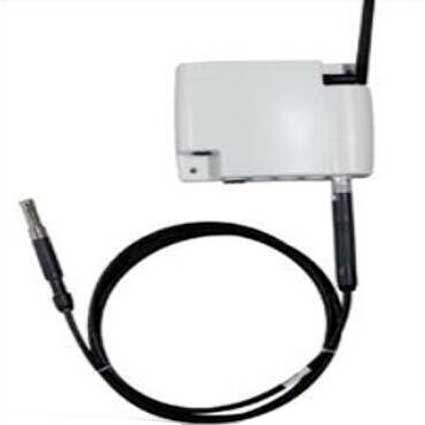

BEMS-d303TM Wireless Temperature and Humidity Transmitter
Performance parameter
Power supply mode: light energy supply, with a spare lithium battery, illuminating below 200Lux to enable the backup battery, lithium battery life of 5-10 years.
Temperature range: -30 ° C ~ 70 ° C, resolution 0.1 ° C
Humidity range: 20% to 95% RH
Humidity accuracy: ±2%RH@25°C, resolution 0.1%RH
Dimensions: 100mm*80mm*50mm, 110mm*85mm*30mm
Housing material: engineering plastics
Wireless parameters: 868M frequency band, GFSK modulation, transmission power 10mW, built-in antenna
Reporting period: 30 seconds, 1 minute, 3 minutes, 5 minutes optional
Data rate: 40kbps
Transmission distance: **visible transmission distance of 100 meters
Installation method: Fixed installation.
Precautions:
The surface of the solar panel cannot be blocked, otherwise it will affect energy collection;
This product cannot be used independently and needs to be used in conjunction with other products of the company;
The shape or color of this product may change, please refer to the goods received;
The site is easy to implement and the terminal address can be freely configured. The data is directly transmitted to the LM5006Z aggregation host or the economical wireless receiver, and the receiver performs unified data storage, uploading, alarming and other subsequent processing.
Product number
BEMS-d303TM
Product Features
Monitor the temperature and humidity changes of the environment and complete the real-time collection by wireless transmission. It can cooperate with the repeater, wireless gateway and host computer software to complete analysis and alarm functions.
BEMS-d303TM Wireless Temperature and Humidity Transmitter
Performance parameter
Power supply mode: light energy supply, with a spare lithium battery, illuminating below 200Lux to enable the backup battery, lithium battery life of 5-10 years.
Temperature range: -30 ° C ~ 70 ° C, resolution 0.1 ° C
Humidity range: 20% to 95% RH
Humidity accuracy: ±2%RH@25°C, resolution 0.1%RH
Dimensions: 100mm*80mm*50mm, 110mm*85mm*30mm
Housing material: engineering plastics
Wireless parameters: 868M frequency band, GFSK modulation, transmission power 10mW, built-in antenna
Reporting period: 30 seconds, 1 minute, 3 minutes, 5 minutes optional
Data rate: 40kbps
Transmission distance: **visible transmission distance of 100 meters
Installation method: Fixed installation.
Precautions:
The surface of the solar panel cannot be blocked, otherwise it will affect energy collection;
This product cannot be used independently and needs to be used in conjunction with other products of the company;
The shape or color of this product may change, please refer to the goods received;
